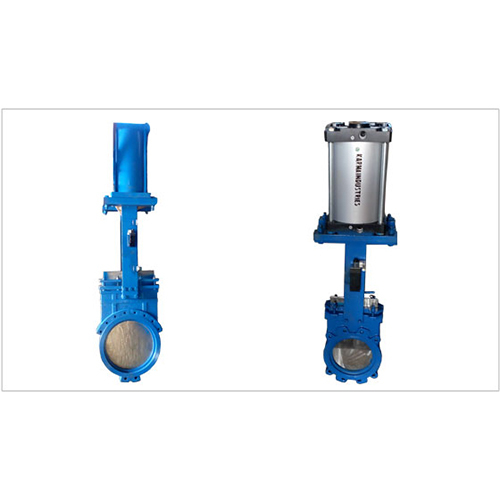

Pneumatic Knife Gate Valves

Name: Pneumatic Knife Gate Valves
Brand: Karma Automation Industries
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pneumatic Knife Gate Valves Specification

Size
50mm to 600mm

Structure
Other

Connection
Other

Sealing
PTFE / EPDM / NBR Soft Seated

Voltage
24/230 Volt (v)

Usage
SUGAR INDUSTRY | PAPER INDUSTRY | ASH HANDLING SYSTEM | PHARMA INDUSTRIES | POWDER APPLICATION | WATERLINE APPLICATION

Material
Other

Type
Other

Power Source
Other

Product Type
PNEUMATIC KNIFE GATE VALVES

Weight
10 Kilograms (kg)

Media
Other

Port Size
Available from 50mm to 600mm

Surface
Blue Epoxy Coated

Shape
Rectangular Body, Circular Gate

Warranty
12 MONTH

Cylinder Pressure Range
4-6 bar

Operation Mode
Double Acting / Single Acting Pneumatic Cylinder

Gate Thickness
As per Design Standard

Face to Face
ANSI / DIN Standard

Operating Media Pressure
Compressed Air, Dry & Clean

Body Test Pressure
1.5 x Nominal Pressure

Seat Material
PTFE, EPDM, NBR, Metal Seated Option

Actuator Mounting
ISO Standard Mounting

Leakage Class
Class VI

Application Industries
Pulp & Paper, Mining, Chemical, Wastewater, Power Plants, Food Industry

Suitable Fluids
Liquids with Suspended Solids, Powders, Bulk Granulars

End Connection Standard
PN10, ANSI 150

Weight
Varies with Size and Construction

Handwheel Override
Available on Request

Bonnet Type
Rising Stem, Non-rising Option

Pneumatic Knife Gate Valves Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Pneumatic Knife Gate Valves About

Experience firsthand the venerable efficiency of our pneumatic knife gate valves, the first-string choice for demanding industries such as pulp & paper, mining, and wastewater management. Crafted for versatility and resplendent performance, each valve features ISO-standard actuator mounting, a robust cast iron or stainless steel body, and a gate engineered from stainless steel for optimal durability. Enjoy fresh access to lowest price options, suitable for a wide array of process media-liquids, powders, and granulars-while guaranteeing Class VI leakage integrity. Benefit from a wide pressure range (up to 10 Bar), PTFE/EPDM/NBR sealing, multiple end connections, and a hallmark blue epoxy coated finish. Engineered for global standards and with handwheel override available on request, these valves deliver effortless operation, long life, and reliability.

Versatile Applications and Precise Control

Pneumatic Knife Gate Valves are extensively used by professionals in industries such as chemical, mining, food, and power generation. Specific usage involves fluid control in pipelines handling liquids with suspended solids, slurries, or bulk granular materials. Direction of use recommends installation between process lines, allowing for bidirectional flow regulation using air-operated actuators. These valves offer accurate modulation for both manual and automated processes, making them indispensable for demanding operational environments.

Global Market Delivery and Secure Packaging

Our Pneumatic Knife Gate Valves serve a resplendent clientele across Asia, Africa, Europe, and more, underlining our prominence as an exporter and manufacturer. Packaging details emphasize sturdy and secure shipping, utilizing reliable crates and cushioning to withstand long-distance transportation. Each valve is accompanied by documentation for traceability and assurance. Delivery time typically ranges from 2 to 6 weeks, depending on size and order volume, with a focus on timely, safe, and predictable logistics.

FAQ's of Pneumatic Knife Gate Valves:

Q: How do pneumatic knife gate valves operate in industrial applications?

A: They work by using compressed air to actuate the gate, offering either double acting or single acting movement for opening and closing, effectively controlling the flow of fluids, slurries, powders, and granular materials in pipelines.

Q: What are the main benefits of choosing these valves over traditional gate valves?

A: These valves provide resplendent sealing performance (Class VI), swift actuation, and suitability for media with suspended solids, drastically reducing maintenance and downtime compared to traditional counterparts.

Q: Where are these valves commonly used?

A: They are first-string solutions in pulp & paper, chemical processing, wastewater treatment, mining, food industries, and power plants-any process where reliable shut-off and handling of challenging media are required.

Q: What is the recommended process for installing a pneumatic knife gate valve?

A: Follow ISO/DIN standard mounting for actuators, secure the valve between corresponding flanges using either wafer or lugged connections, and ensure clean, dry compressed air supply at 4-6 bar to the actuator.

Q: When should I use the handwheel override feature?

A: The handwheel override is ideal when manual operation becomes necessary, such as during air supply failure or when precise flow regulation is momentarily required.
