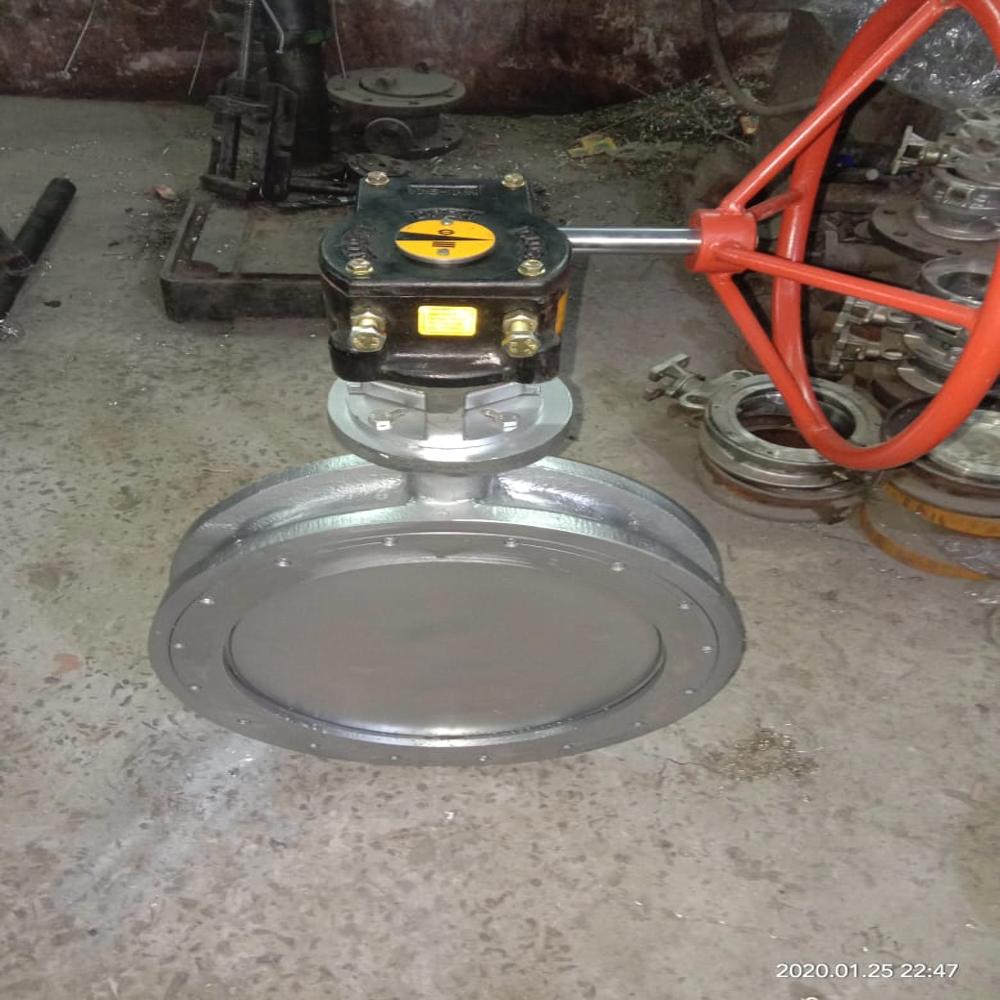

Gear Operated Butterfly Valves

Get a Price/Quote

MOQ : 1 Piece

Gear Operated Butterfly Valves Specification

Connection
Wafer Type (between flanges)

Valve Type
Gear Operated Butterfly Valve

Material
Cast Iron body with Stainless Steel disc (image indication)

Power Source
Manual (via Gear operator)

Pressure
Suitable up to PN16 (as commonly used in gear operated types)

Media
Water, Air, Oil, Gas

Working Temperature
Up to 120C (depends on seat material, general standard)

Port Size
Available from 2 to 24 (DN50-DN600)

Shape
Wafer type round shape

End Connection Standard
Compatible with ANSI, DIN, BS Flanges

ISO Pad Mounting
Included for actuator adaptation

Disc Material
Stainless Steel SS304/SS316 (as appears in the image)

Operation
Quarter Turn (90 degrees)

Body Coating
Epoxy Powder Coated

Mounting Orientation
Horizontal/Vertical possible

Handle Type
Handwheel with Gearbox

Application Industries
Waterworks, HVAC, Chemical, Process, Oil & Gas, Power Plants

Leakage Class
Class VI (bubble tight)

Torque Output
Low torque operation (due to gear mechanism)

Seat Material
EPDM/NBR/Viton (seat color suggests synthetic elastomer)

Gear Operated Butterfly Valves Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Gear Operated Butterfly Valves

Spotlight on efficiency: Our Gear Operated Butterfly Valves, venerable for their engineered precision, feature a decorated cast iron body with stainless steel SS304/SS316 disc, providing ravishing corrosion resistance. Procure reliable sealing with reduced leakage risks, thanks to Class VI bubble-tight seats in EPDM, NBR, or Viton. The gear operator ensures low-torque, quarter-turn operation with handwheel control, adaptable via ISO pad mounting. Epoxy powder coating enhances durability, making these valves ideal for waterworks, HVAC, chemical, oil & gas, and power plants. Suitable for horizontal or vertical installations-meeting ANSI, DIN, and BS standards.

Primary Competitive Advantages and Suitable Applications

These gear operated butterfly valves are decorated with robust gear mechanisms allowing low torque output and smooth operation. Compatible with various flange standards, they offer ravishing adaptability for both horizontal and vertical installations. Reliable for water, air, oil, and gas, their bubble-tight leakage class and durable epoxy-coated body spotlight them as a preferred choice for waterworks, HVAC, chemical processing, and power plants. Their versatility makes them venerable additions to industrial systems requiring longevity and precise flow control.

Domestic Market, Delivery, and Payment Terms

Our gear operated butterfly valves are extensively dispatched throughout the main domestic market of India. As a prominent supplier, we facilitate swift delivery and seamless exchange processes, adhering to competitive FOB port options for bulk export. Flexible payment terms are available, ensuring efficient procurement for distributors, exporters, importers, and traders. Clients benefit from prompt service from order to delivery, with valves efficiently delivered to keep systems running smoothly and on schedule.

FAQ's of Gear Operated Butterfly Valves:

Q: How does the gear operator improve the valve's usability?

A: The gear operator reduces required torque and allows for smoother, controlled quarter-turn operation, making the valve easier to operate, especially in larger sizes or higher pressures.

Q: What seat materials are available and how do they benefit different applications?

A: Available seat materials include EPDM, NBR, and Viton. Each synthetic elastomer offers distinguished chemical and temperature resistance, making the valves suitable for various media and industries.

Q: Where can these gear operated butterfly valves be installed?

A: These valves can be mounted horizontally or vertically, fitting seamlessly between ANSI, DIN, or BS standard flanges in waterworks, industrial plants, or HVAC systems.

Q: When is it ideal to use SS304/SS316 stainless steel disc valves?

A: SS304/SS316 discs are recommended when superior corrosion resistance and longevity are necessary, such as in chemical processing, oil & gas operations, or water treatment plants.

Q: What is the typical delivery process for these valves in India?

A: After order confirmation, the valves are promptly dispatched from the FOB port to the desired location, ensuring swift delivery and minimal system downtime for clients nationwide.

Q: How does the leakage class VI (bubble tight) rating enhance performance?

A: Leakage Class VI ensures a bubble-tight shutoff, reducing losses and maintaining system integrity. This is particularly beneficial in applications requiring absolute isolation or high safety standards.
